Pre-Engineered Long-Span Prefabricated Steel Structure Warehouse

Pre-Engineered Long-Span Prefabricated Steel Structure Warehouse

Main Frame:H Section SteelRoof Cladding:Corrugated SheetDesign Load:Wind, Snow,
Send Inquiry
Description
Argument
Products Description
Main Frame:H Section SteelRoof Cladding:Corrugated Sheet
Design Load:Wind, Snow, SeismicUsage:Warehouse, Dormitories, Workshop, Hangar
Wall Purlin:C Purlin

Highlight:

Prefabricated Steel Structure Warehouse

Long Span Steel Structure Warehouse

Long Span Industrial Construction Building

Product Components

ComponentsSpecifications
Embedded PartsAnchor BoltM30*1050
High Strength BoltM20,10.9S
Common BoltM20
Galvanized BoltM12
Shear NailM19*80
Tir RodΦ12
Brace RodΦ32*2.5
Self-tapping ScrewM5
Main Steel
structure parts
Steel Column(Q355B)H500X250X8X12,H450X220X8X12 ,H300~700X250X6X10
Wind Column(Q355B)H400X200X6X8
Roof Frame Beam(Q355B)H700~450X200X6X10,H450X200X6X10
Main Beam(Q355B)H600X220X8X14
Secondly Beam(Q355B)HN346X174X6X9
Ring Beam(Q235B)100*1.8
Stairs[20U-steel+3mm Riffled plate
Roof Purlin(Q235B)C120*50*20*2.0
Tir Bar(Q235B)Φ140*4.0
Column BraceΦ140*4.0
Horizontal BraceΦ25 Round bar
Angle BraceL50*4.0
Roof Purlin(Q235B)Z250X75X20X2.2
Wall Purlin(Q235B)C220X70X20X2.2
Connecting Panel(Q355B)6-20MM steel panel
Other Steel structure partsRolling Gate(including motor)4000X3500X2 PCS,3200X3500X1 PCS
Aluminum Louvers1m high
Grating +Hand rail1m high
Floor Deck1.0Thickness 880#
Damper2.0Thickness Galvanized panel
Roof Panel50mmThickness rock sandwich panel
External Wall panel50mm Thickness rock sandwich panel
Trimming0.5 thickness
Down pie(including parts)φ110PVC
Gutter (including parts)1.2 Thickness of stainless gutter

Components of Steel Structure Warehouse

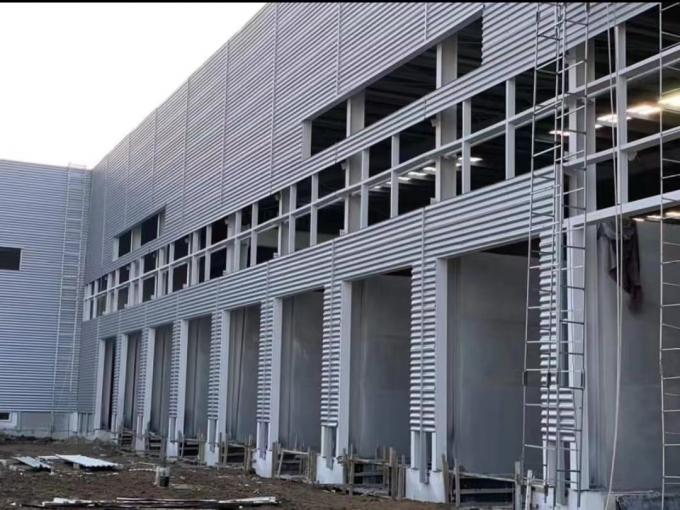

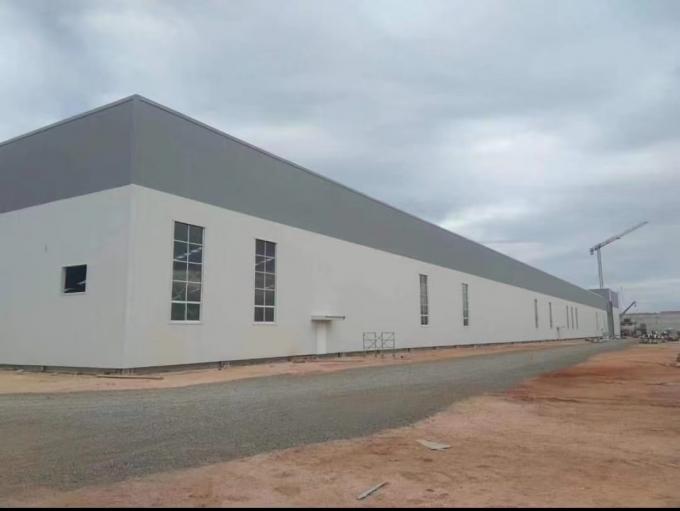

Pre-Engineered Long Span Industrial Construction Building Prefabricated Steel Structure Warehouse 0Pre-Engineered Long Span Industrial Construction Building Prefabricated Steel Structure Warehouse 1Pre-Engineered Long Span Industrial Construction Building Prefabricated Steel Structure Warehouse 2Pre-Engineered Long Span Industrial Construction Building Prefabricated Steel Structure Warehouse 3

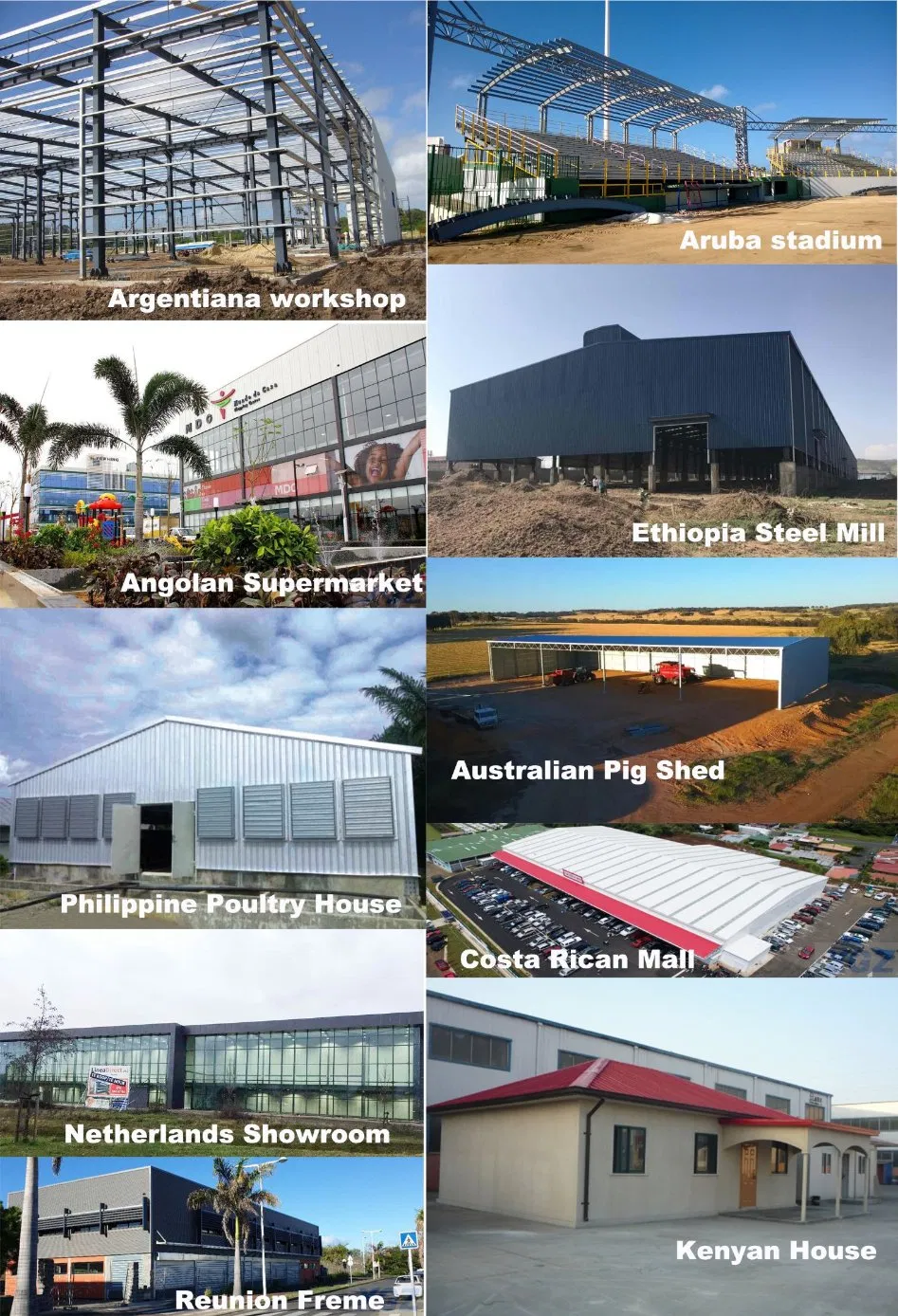

Project Exhibition

Pre-Engineered Long Span Industrial Construction Building Prefabricated Steel Structure Warehouse 5

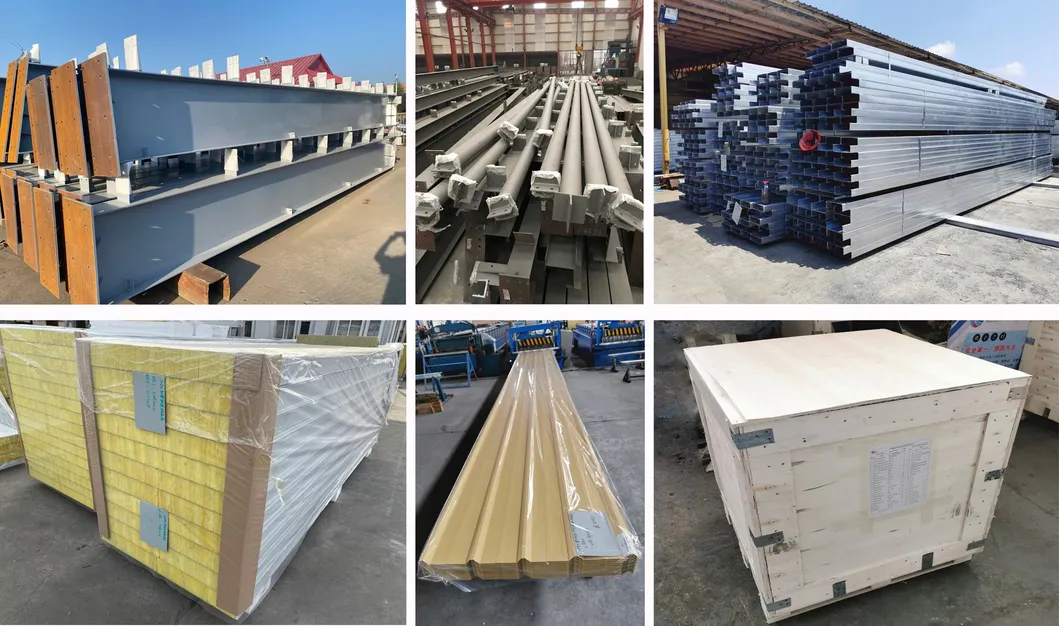

Packaging& Trasportation

PACKAGING& LOADING
1. All standard components are packed in plywood box.
2. All steel structure weld components are packed with blanket or bubble-wrap to avoid scratch during loading and unloading.
3. All steel structure are packed in steel pallet together into container, much save loading and unloading time, labor cost.
4. All sandwich panel are packed in steel pallet.
5. Material components will be made container load plan, also make regional unloading plan to avoid retransport on site.

Port

Pre-Engineered Long Span Industrial Construction Building Prefabricated Steel Structure Warehouse 6


TRANSPORTATION
We have more than 10 logistics companies that have cooperated with us for many years and can apply for the most favorable transporation charage for you.

Pre-Engineered Long Span Industrial Construction Building Prefabricated Steel Structure Warehouse 7


About Xinbaochheng


Advanced equipment, great production capacity and prompt delivery that make us establish good relationship with more than 90 countries and regions:Canada,The United States,UAE,South Africa,Germany,France,Japan,Argentina,Venezuela and many other countries and regions. And we have participated in many significant construction projects, such as Argentine Workshop, Australian Aircraft Hanger, Mauritius Government Projects and so on.

The company tenet of us is to "perfect itself and create wealth by taking the social development as its responsibility;the enterprise,a platform;and its team, the core of development".



SALES AND SERVICE NETWORK
XBC have the Chinese Managing Qualification of external contractor for Construction by Chinese Ministry of Commerce, andhas cooperated with B&R countries long before. We face European and American markets and seek for international devel-opment path; our partners are from Canada, Australia, Germany, France, Brazil, England, America, etc., more than 80 coun-tries all over the world.

The group embraces the corporate mission of " social responsibility, enterprise oriented, team focused, create wealth and self improvement'



OUR ADVANTAGES & SERVICES
Pre-sale service
1.Consultant service
2.Primary design plan
3.Budget calculation

4.Draw up the contract

During-sale Service
1.Fabrication and Packing
2.Statistcal table of material
3.Delivery
4.Submission of specific construction drawings


After-sale Service
1.Guidance and instructions for installation
2.Installation on site in needed
3.Feedback after sale
