Products Description
XBCSTEELSTRUCTURE specializes in the design, fabrication, supply, and delivery of customized prefabricated steel structure buildings. Our steel buildings are manufactured using high-quality structural steel and advanced prefabrication technology, providing reliable, durable, and cost-effective construction solutions for industrial, commercial, and logistics applications.
Steel Structure System Description
Our prefabricated steel structure buildings are composed of primary framework and secondary bracing systems, all made of structural steel to ensure overall stability and strength.
Primary Framework

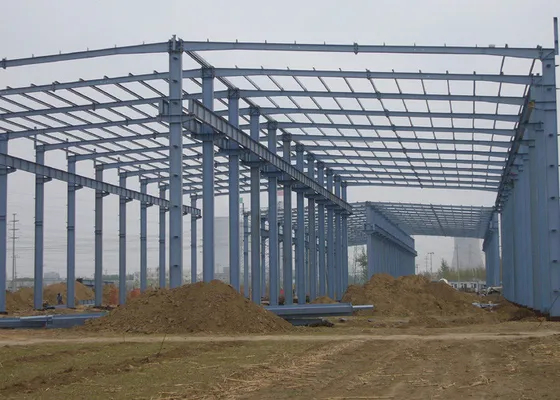

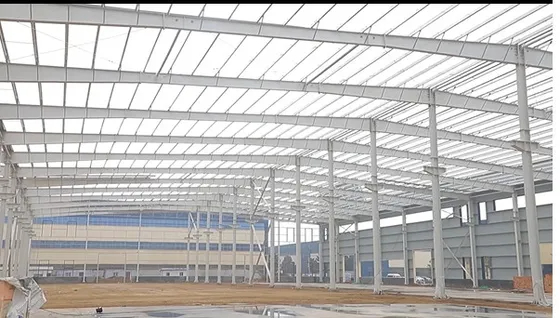

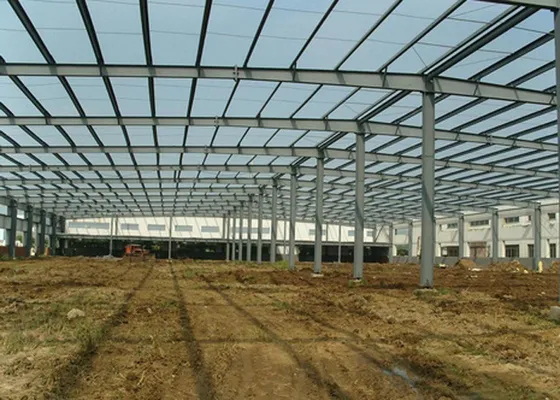

The main structure is designed as a portal rigid frame, consisting of steel columns and steel beams fabricated from welded Q355B H-section steel. All connections are bolted to ensure precision, strength, and ease of installation.Secondary Bracing System
The bracing system includes tie bars, horizontal bracing, column bracing, as well as roof purlins and wall girts. These members work together to enhance the rigidity and load-bearing capacity of the entire building.
The portal steel frame combined with the external enclosure system forms a fully enclosed structure capable of withstanding severe weather conditions, including strong wind, heavy rain, and snow loads.
Prefabrication & Installation
All steel components are cut, welded, drilled, and surface-treated (painted or hot-dip galvanized) in our workshop under strict quality control. After fabrication, components are transported to the construction site as prefabricated units.
No on-site welding required
Components are assembled using high-strength bolts
Fast installation, reduced labor cost, and shorter construction period
The steel frame structure is composed of five main structural elements:
tension members, compression members, bending members, combined stress members, and their connections—ensuring excellent mechanical performance.
Technical Parameters
Dimensions: Length × Width × Height (with or without interior columns)
Structure Type: Portal frame, double slope roof, single span, optional partial mezzanine
Foundation: Concrete foundation with embedded steel anchor bolts
Columns & Beams: Welded H-section steel (Q355B), variable cross-section, bolted connections
Bracing: X-type bracing using angle steel or round steel bars
Purlins: C or Z section steel (C160–300 / Z160–300)
Roof & Wall Panels:
Single-layer corrugated steel sheet
Sandwich panels with EPS, rock wool, glass wool, or PU insulation
Accessories: Skylight panels, roof ventilators, gutters, downpipes, doors, windows, etc.
Surface Treatment: Painting or hot-dip galvanizing
Packing: Nude packing or steel pallet packing, suitable for 40’HQ / OT containers
Wall & Roof System
Roof panels are typically supplied in single continuous lengths from eaves to ridge, suitable for portal frame buildings.

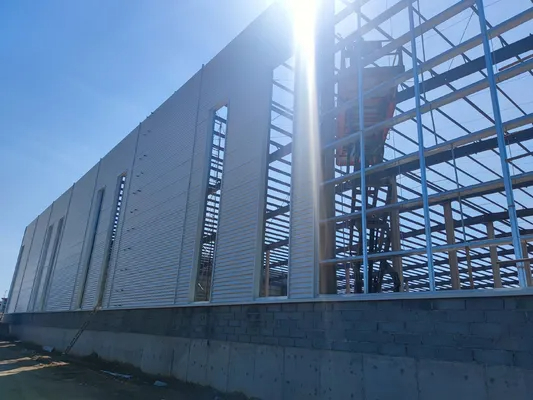

Wall panels are supplied in continuous lengths from floor level to eaves, usually corrugated steel sheets with thickness 0.4–0.6 mm.
For buildings requiring thermal insulation, sandwich panels are recommended.
Advantages of XBC Prefabricated Steel Structures
High strength with lightweight design
Factory-controlled quality and precision manufacturing
100% recyclable steel materials
Excellent seismic performance and structural stability
Reduced maintenance and long service life
20%–30% lower overall cost compared with traditional concrete buildings
Key Characteristics
1. Short Construction Period
Factory prefabrication and on-site bolted assembly significantly shorten construction time, ideal for warehouses and urgent industrial projects.
2. Environmental Protection
No wet operations on site, minimal dust, and reduced construction waste. Steel recyclability supports sustainable development.
3. Cost Efficiency
Lower foundation, labor, and construction costs compared with concrete structures, while providing superior durability and safety.
4. Lightweight Structure
Lightweight walls and roofing reduce overall building load without compromising structural integrity.
Why Choose XBCSTEELSTRUCTURE
With extensive experience in delivering high-quality prefabricated steel structure buildings, XBCSTEELSTRUCTURE provides reliable technical support from design to installation. Our team is always ready to assist you before material delivery and throughout the construction process, ensuring smooth project execution and long-term performance.
