1.Product Description

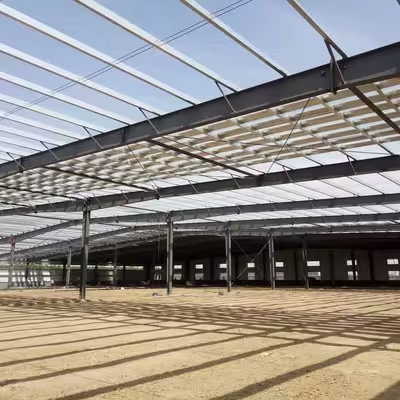

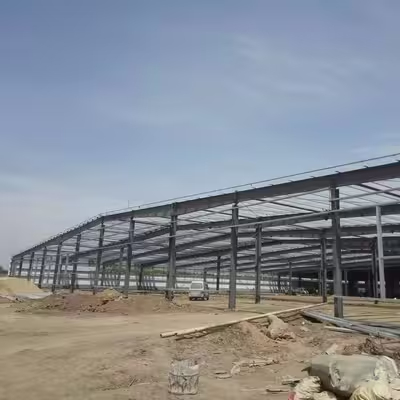

Prefabricated Steel frame buildings are increasingly popular due to the speed of their install, sustainability aspects and affordability. Steel structures can be a very cost-effective way to give yourself more space. Prefab Steel structure building is new type building structure, structure formed by steel column, beam, bracing and purlin, all the components are prefabricated manufactured in workshop and ready for assembling, wall and roof materials could use single color sheet or sandwich panel, all the steel structure components connected by bolt, easy installation and quickly finished
2.Product Specifications
| Steel Frame | H section steel | Q235/Q345 steel plate thickness: 8-30mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface finish | Alkyd paint or galvanized | |
| Intensive bolt | M20,Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ20, Steel Q235, processed and painted | |
| Column brance | Φ20, Steel Q235, processed and painted | |
| Tie rod | Φ89*3, Steel Q235, processed and painted | |
| Ordinary bolt | M12 Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel or corrugated steel sheet | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet | |
| Down pie | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | Sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Ventilation | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel/window |
